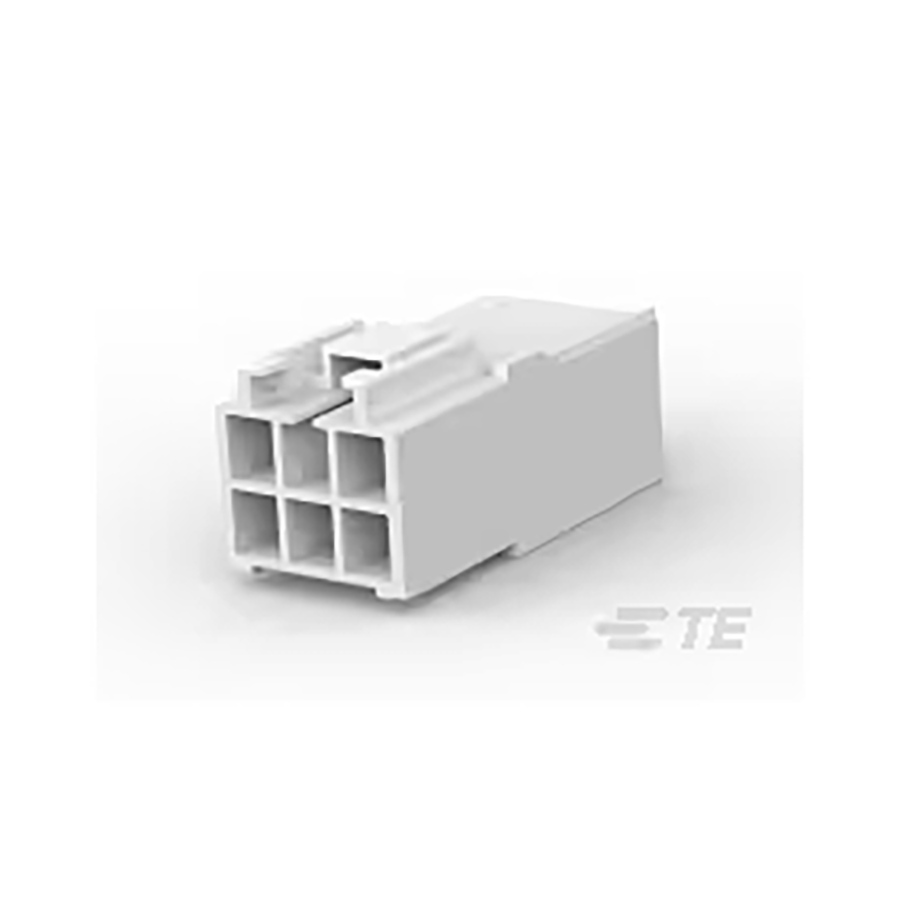

176285-1
Manufacturer:
TE Connectivity
Mfr.Part #:
176285-1
Datasheet:
Description:
Headers and Wire Housings Free Hanging Tab Number of Positions:6 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Length | 28.956 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Height | 13 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 29 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Pitch | 3.96 mm |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Operating Supply Voltage | 300 V |
| Color | Natural |
| Gender | Male Pin |
| Number of Contacts | 6 |
| Connector Type | Tab |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 181 µm |
| Housing Material | Nylon |
| Fastening Type | Latch |
| Max Voltage Rating (AC) | 600 V |
| Contact Current Rating | 7 A |
| Housing Color | Natural |
| Mating Post Length | |
| Termination Post Length |
Stock: 896
Distributors
pcbx
pcbxUnit Price$0.21082
Ext.Price$0.21082
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21082 | $0.21082 |
| 10 | $0.18782 | $1.87820 |
| 50 | $0.16733 | $8.36650 |
| 100 | $0.14565 | $14.56500 |
| 500 | $0.12678 | $63.39000 |
| 1000 | $0.12137 | $121.37000 |
| 3000 | $0.11619 | $348.57000 |
| 5000 | $0.11123 | $556.15000 |
